Fire-Resistant Soffits & Eaves

Guidance on the design and construction of eaves, overhangs, and soffits in wildfire zones for new and existing buildings.

Key Issues

  • Windborne embers, convective heat, and radiant heat can be trapped under overhangs and in the upper portion of exterior walls. Overhangs and walls can ignite if not constructed out of non-combustible or fire-resistant materials.
  • Typical construction materials for eaves, overhangs, and soffits are not fire-resistant, and, therefore, are susceptible to ignition by embers and hot gases.
  • Once an eave, overhang, or soffit has ignited, fire can spread onto the roof, into the attic, or onto and through the exterior wall.
  • Soffits normally have vents as part of the attic ventilation system. Unprotected vents can allow embers and hot gases to enter the attic (see fire-resistant vents).

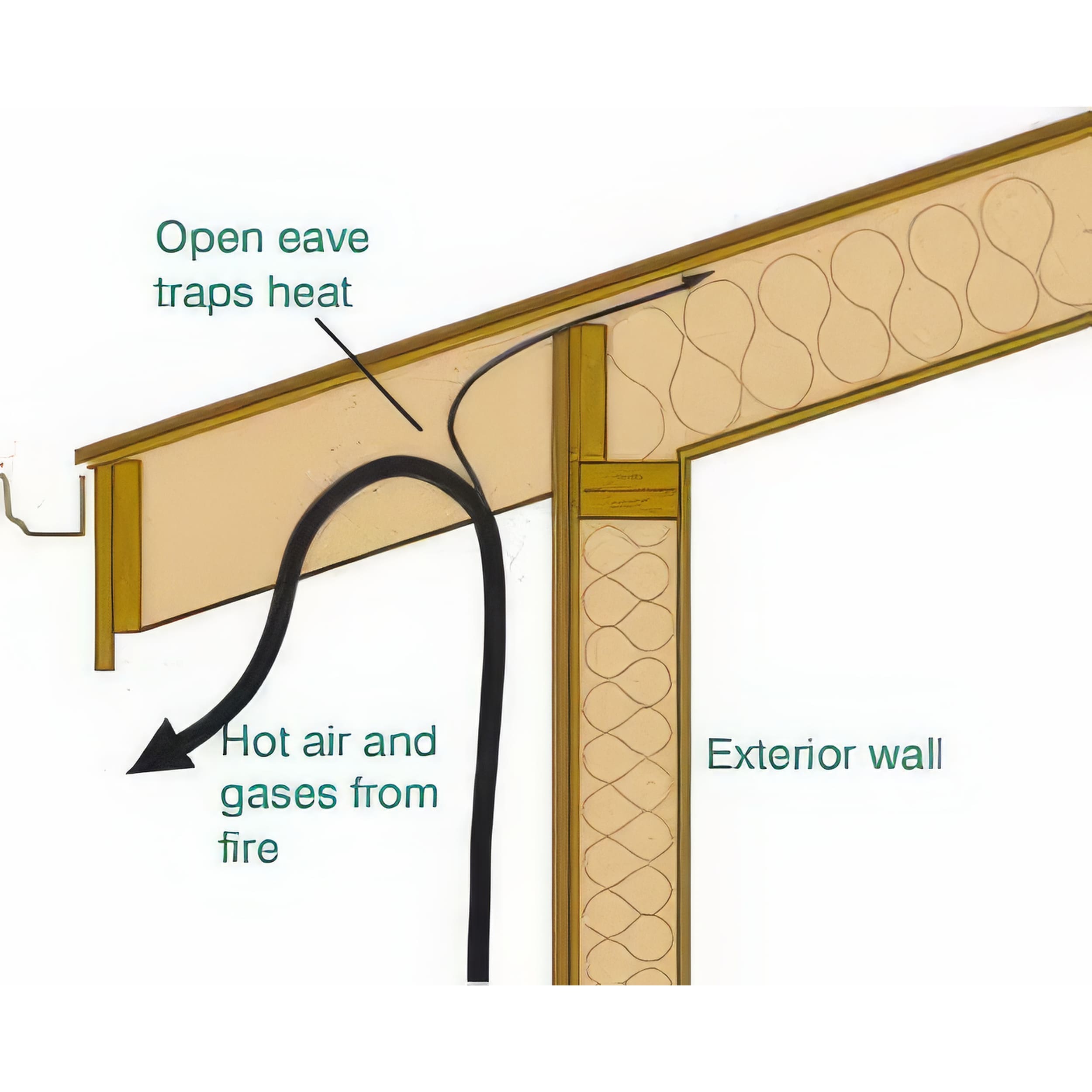

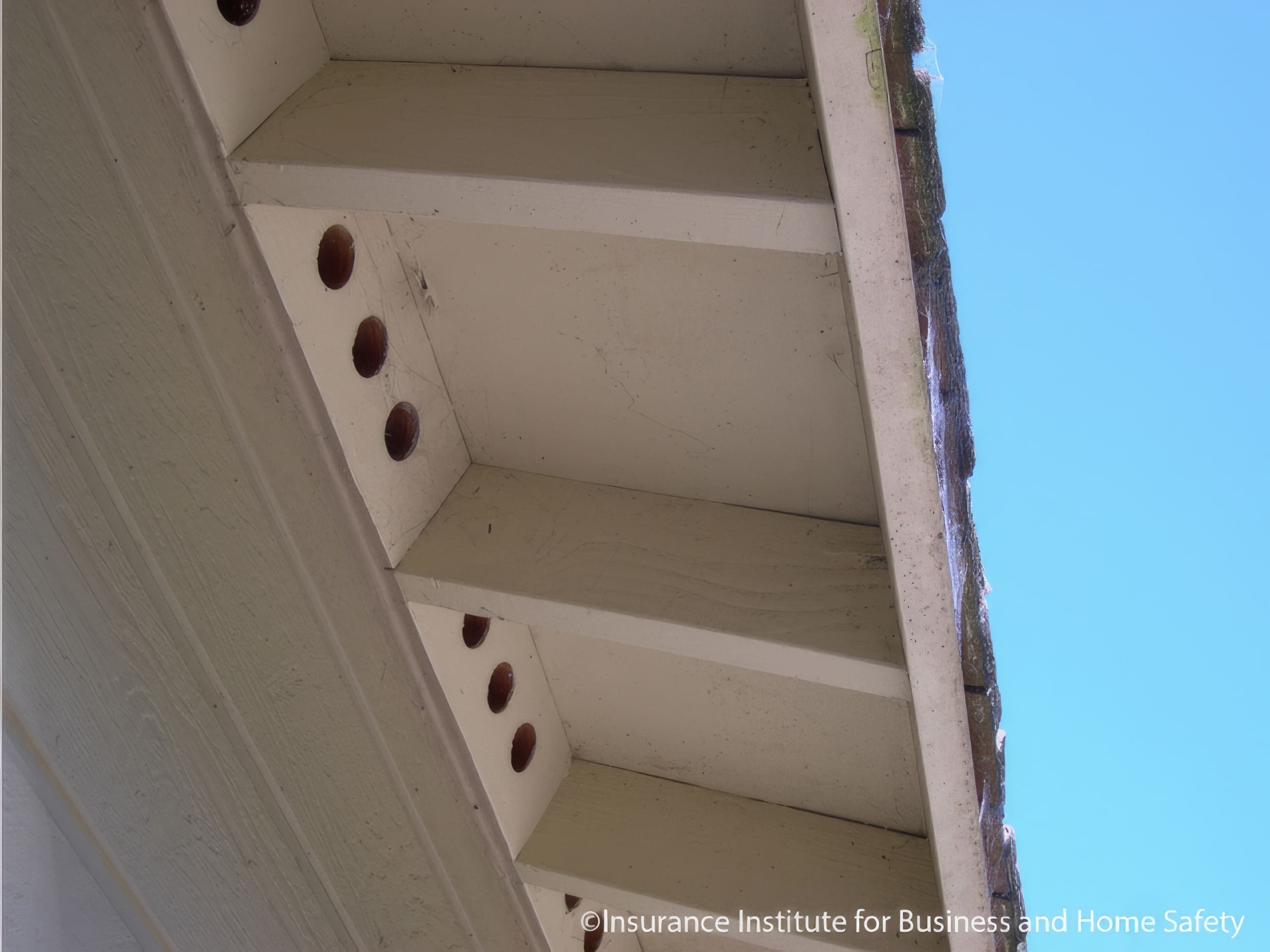

Figure 1. An open overhang.
Figure 1. An open overhang. The exposed timber rafters and decking are susceptible to ignition, and embers and hot gases can enter the attic through unprotected vents.

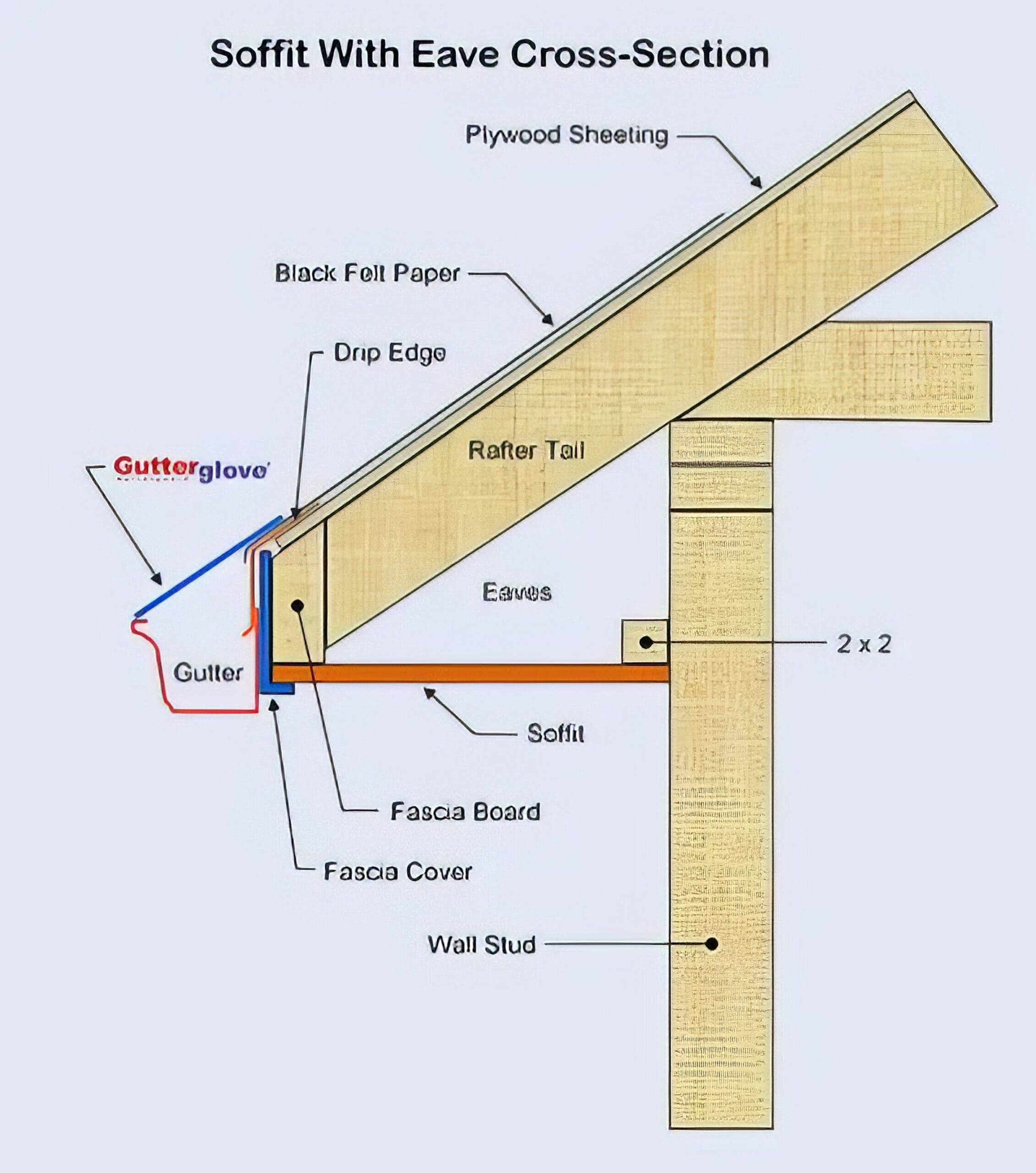

Typical Design & Construction Eaves

Eaves are located at the down-slope edge of a sloped roof and serve as the transition between the roof and fascia/wall. Eaves, Overhangs, and Soffits panels are vulnerable to damage from wildfires. Metal panels conduct heat and can distort and allow the passage of embers and hot gases. Untreated wood panels can ignite, and vinyl panels can melt and fall away.

graphic of roof exterior

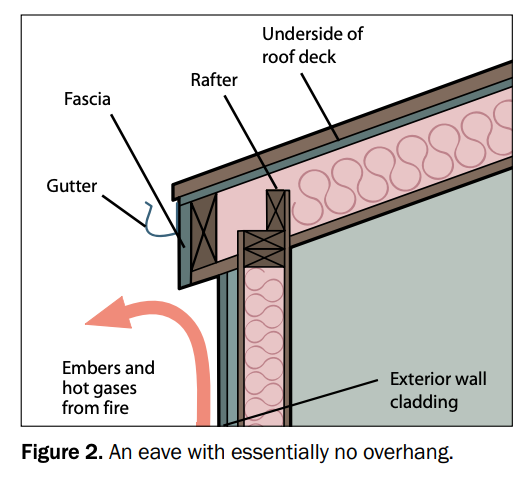

Figure 2. An eave with essentially no overhang.
graphic of roof exterior

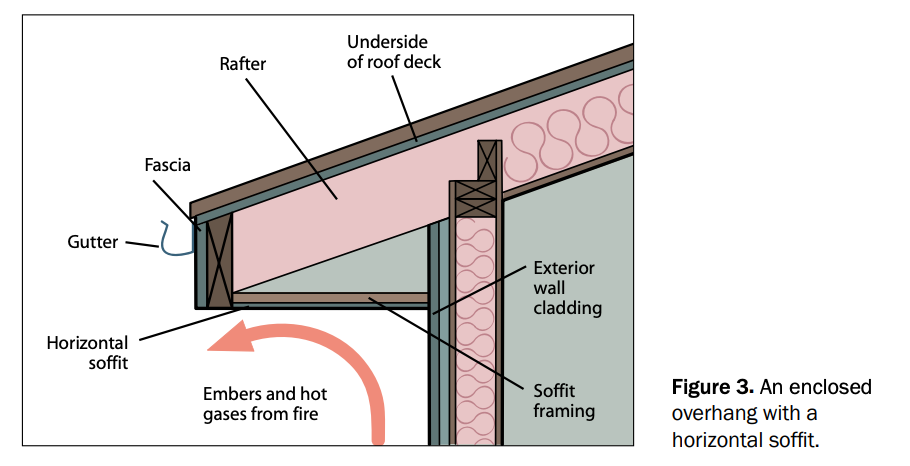

Figure 3. An enclosed overhang with a horizontal soffit.

Guidance for New Buildings

  • Consider designing the building without overhangs (see Figure 2) to avoid the fire-related problems associated with soffits, or to minimize the extent of the overhang to reduce the potential for entrapment of embers and hot gases.
  • If having no overhangs, or short overhangs, are unacceptable because of aesthetics or a desire to protect the walls from rainfall or windows from the sun, implement the following recommended measures:
    • Enclose overhangs with soffits that have a minimum one-hour fire-resistance rating to prevent embers and hot gases from making contact with the joists, rafters or trusses, or the underside of the roof decking.
    • Use flat, horizontal soffits (see Figure 3) instead of attaching the soffits to the sloped joists, which creates sloped soffits. A flat soffit reduces the potential for entrapment of embers and hot gases.
  • For the fascia, use non-combustible or fire-resistant materials (e.g., fire-retardant-treated lumber, fiber-cement board, etc.).
  • For eave vents, follow the guidance in FEMA Technical Fact Sheet No. 8, located within The Home Builder’s Guide to Construction in Wildfire Zones. See also Figure 3 (enclosed overhang with a horizontal soffit) which shows the path of embers and hot gases rising from the exterior fire wall and passing under the roof deck including the fascia, gutter and rafter.
  • Install a soffit under open overhangs according to the guidance provided above.
  • Evaluate the fire-resistance of existing soffits and replace soffits that are not fire-resistant according to the guidance provided above. Some existing soffits (such as those constructed of plywood) can be covered with a non-combustible or fire-resistant material such as fiber-cement board or stucco.
  • In very high Fire Severity Zones, install exterior 5/8-inch fire-resistant gypsum board between the existing and new soffit materials for enhanced fire resistance.
  • If the fascia is combustible, cover the fascia board with a noncombustible or fire-resistant material (e.g., fire-retardant-treated lumber, fiber-cement board, etc.).
  • For eave vents, follow the guidance on Fire-Resistant Vents.
  • For more information about Eaves, Overhangs, and Soffits, refer to the FEMA Technical Fact Sheet No. 6.

Considerations

Planting combustible vegetation under eaves and overhangs should be avoided. See FEMA Technical Fact Sheet No. 4, Defensible Space.

Effectiveness

All mitigation measures listed in the same Fact Sheet No. 4 are effective in all Fire Severity Zones.

Recommendation

We recommend that all structures in Marin County use the features discussed here. However, you must consult your building and fire code officials for permits and local requirements, which may differ.
